Configuring Tests for Cisco ASR Router

After adding Cisco ASR Router component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

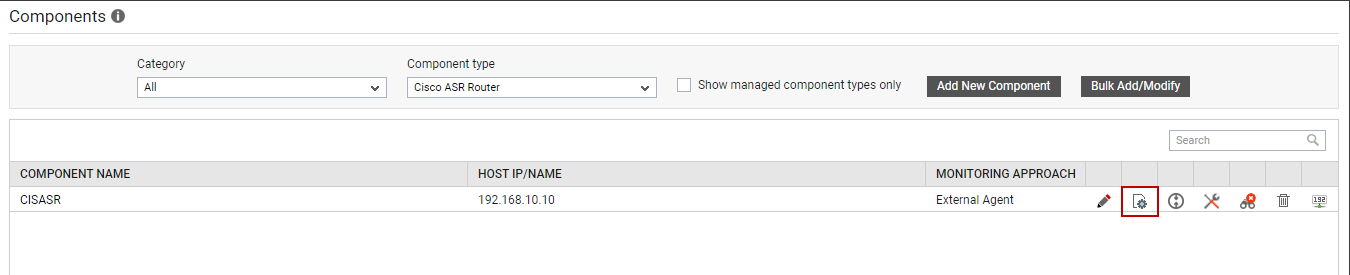

Figure 1 : Listing the newly added Cisco ASR Router component

To collect the performance metrics, you may need to configure the tests that are mapped to the Cisco ASR Router component. To configure the tests that need manual configuration, click on the icon in Figure 1.

Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

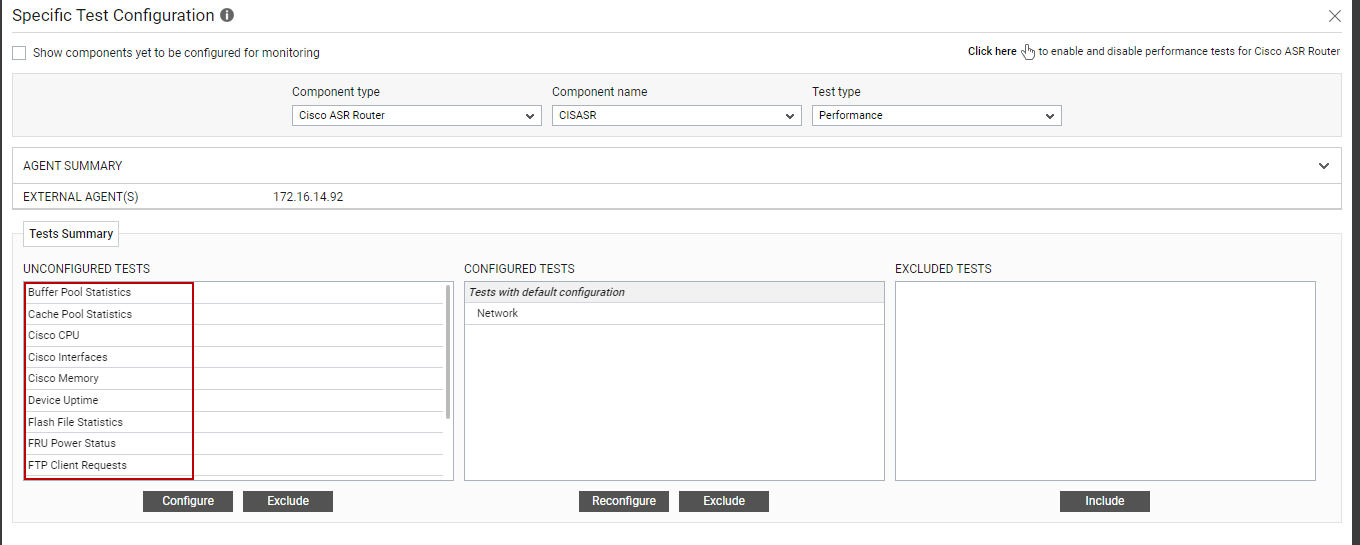

Figure 2 : The list of unconfigured tests for Cisco ASR Router component

Click on any of the tests in Figure 2 to configure it. For instance, if you click on the Flash File Statistics test, Figure 3 will appear.

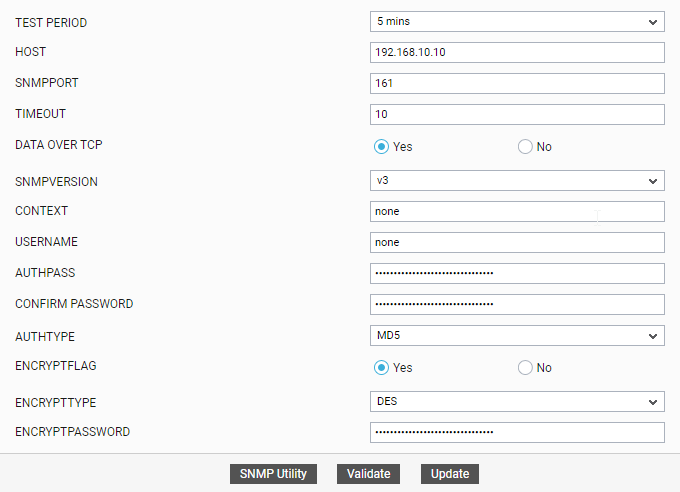

Figure 3 : Configuring the Flash File Statistics test

To know how to configure this test, refer to Flash File Statistics Test.

Click the Update button in Figure 3 to update the test configuration. This will automatically configure all the other unconfigured tests for the Cisco ASR Router component.
