Chassis Fan Modules Test

The Cisco UCS Blade server chassis contains eight hot-swappable fan modules. These fan modules ensure that the internals of the chassis always receive adequate air flow and the temperature within the chassis is maintained at acceptable levels at all times. Snags in the functioning of the fan module can hence hamper air flow, which in turn may have disastrous effects on the health of the other chassis components.

By periodically monitoring the availability, overall health, operational state, and the temperature of fan module, you can promptly detect abnormalities in the operations of the module and initiate speedy remedial measures. This test does just that.

Target of the test : A Cisco UCS manager

Agent deploying the test : A remote agent

Outputs of the test : One set of results for each fan module available in each chassis managed by the Cisco UCS manager being monitored.

Configurable parameters for the test
Parameter Description

Test Period

How often should the test be executed.

Host

The IP address of the host for which the test is being configured.

Port

The variable name of the port at which the specified host listens.

UCS User and
UCS Password

Provide the credentials of a user with at least read-only privileges to the target Cisco UCS manager.

Confirm Password

Confirm the password by retyping it here.

SSL

By default, the Cisco UCS manager is SSL-enabled. Accordingly, the SSL flag is set to Yes by default.

Web Port

By default, in most virtualized environments, Cisco UCS manager listens on port 80 (if not SSL-enabeld) or on port 443 (if SSL-enabled) only. This implies that while monitoring Cisco UCS manager, the eG agent, by default, connects to port 80 or 443, depending upon the SSL-enabled status of Cisco UCS manager - i.e., if Cisco UCS manager is not SSL-enabled (i.e., if the SSL flag above is set to No), then the eG agent connects to Cisco UCS manager using port 80 by default, and if Cisco UCS manager is SSL-enabled (i.e., if the SSL flag is set to Yes), then the agent-Cisco UCS manager communication occurs via port 443 by default. Accordingly, the WebPort parameter is set to default by default.

In some environments however, the default ports 80 or 443 might not apply. In such a case, against the WebPort parameter, you can specify the exact port at which the Cisco UCS manager in your environment listens, so that the eG agent communicates with that port for collecting metrics from the Cisco UCS manager.

Detailed Diagnosis

To make diagnosis more efficient and accurate, the eG Enterprise suite embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option.

The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:

  • The eG manager license should allow the detailed diagnosis capability
  • Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.
Measurements made by the test
Measurement Description Measurement Unit Interpretation

Overall status

Indicates the overall status of this fan module present in this chassis.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Operable 1
Inoperable 2
Degraded 3
Powered-off 4
Power-problem 5
Removed 6
Voltage-problem 7
Thermal-problem 8
Performance-problem 9
Accessibility-problem 10
Identity-unestablishable 11
Bios-post-timeout 12
Disabled 13
Fabric-conn-problem 51
Fabric-unsupported-conn 52
Config 81
Equipment-problem 82
Decommissioning 83
Chassis-limit-exceeded 84
Discovery 101
Discovery-failed 102
Identify 103
Post-failure 104
Upgrade-problem 105
Peer-comm-problem 106
Auto-upgrade 107

Note:

By default, this measure reports the above-mentioned States while indicating the overall status of a fan module. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

The detailed diagnosis of this measure provides the Time, ID, PID, Module, Revision, Serial Number, Tray and Vendor attributes for the fan module.

Operability

Indicates the current operating state of this fan module in this chassis.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Operable 1
Inoperable 2
Degraded 3
Powered-off 4
Power-problem 5
Removed 6
Voltage-problem 7
Thermal-problem 8
Performance-problem 9
Accessibility-problem 10
Identity-unestablishable 11
Bios-post-timeout 12
Disabled 13
Fabric-conn-problem 51
Fabric-unsupported-conn 52
Config 81
Equipment-problem 82
Decommissioning 83
Chassis-limit-exceeded 84
Discovery 101
Discovery-failed 102
Identify 103
Post-failure 104
Upgrade-problem 105
Peer-comm-problem 106
Auto-upgrade 107

Note:

By default, this measure reports the above-mentioned States while indicating the operating state of a fan module. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Performance state

Indicates the current performance state of this fan module in this chassis.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Ok 1
Upper-non-recoverable 2
Upper-critical 3
Upper-non-critical 4
Lower-non-critical 5
Lower-critical 6
Lower non-recoverable 7

Note:

By default, this measure reports the above-mentioned States while indicating the performance state of a fan module. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Power state

Indicates the current power state of this fan module in this chassis



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
On 1
Test 2
Off 3
Online 4
Offline 5
Offduty 6
Degraded 7
Power-save 8
Error 9

Note:

By default, this measure reports the above-mentioned States while indicating the power state of a fan module. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Presence state

Indicates whether this fan module exists or not in this chassis currently.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Empty 1
Equipped 10
Missing 11
Mismatch 12
Equipped-not-primary 13
Equipped-identity-unestablishable 20
Inaccessible 30
Unauthorized 40

Note:

By default, this measure reports the above-mentioned States while indicating the existence of a fan module in a chassis. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Thermal state

Indicates the current thermal state of this fan module present in this chassis.



The States reported by this measure and their corresponding numeric equivalents are described in the table below:

State Numeric Value
Unknown 0
Ok 1
Upper-non-recoverable 2
Upper-critical 3
Upper-non-critical 4
Lower-non-critical 5
Lower-critical 6
Lower non-recoverable 7

Note:

By default, this measure reports the above-mentioned States while indicating the current thermal state of a fan module. However, in the graph of this measure, states will be represented using their corresponding numeric equivalents only.

Exhaust temperature

Indicates the current exhaust temperature of the fans present in this fan module in this chassis.



Since an abnormal temperature can cause damage to the fans, the value of this measure should be well within normal limits.

The detailed diagnosis of the Overall status measure provides the Time, ID, PID, Module, Revision, Serial Number, Tray and Vendor attributes for the fan module.

layer 4 test 4 measure 2 dd

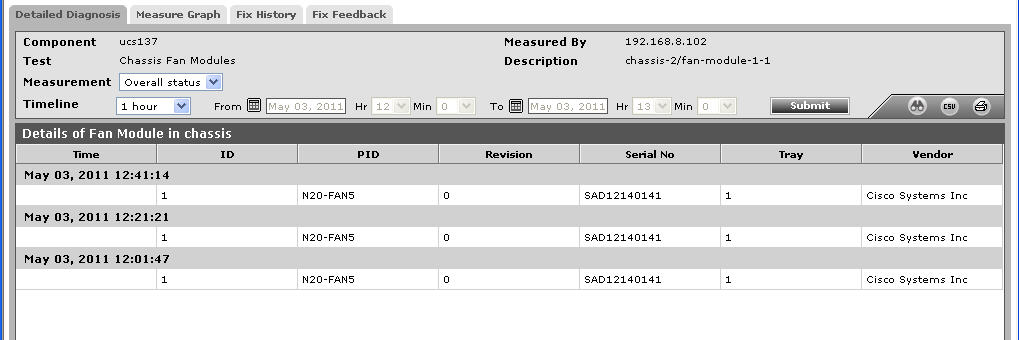

Figure 1 : The detailed diagnosis of the Overall status measure of the Chassis Fan Modules test
