The Network Layer

The tests mapped to this layer report the availability of the ADC appliance over the network, point you to unavailable NICs and NIC-related errors, and monitor the RNAT sessions and the VLAN traffic on the appliance.

networklayertests1

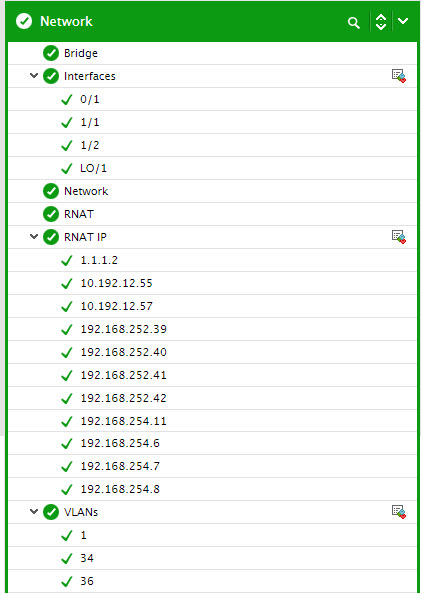

Figure 1 : The tests mapped to the Network layer
