Managing a Web AppFlow Device in eG Enterprise

To do this, follow the steps below:

  1. Login to the eG administrative interface.
  2. Follow the Infrastructure -> Components -> Add/Modify menu sequence. In the page that appears next, select ADC Web AppFlow as the Component type and click the Add New Component button to add a new component of that type. Figure 2 will then appear.

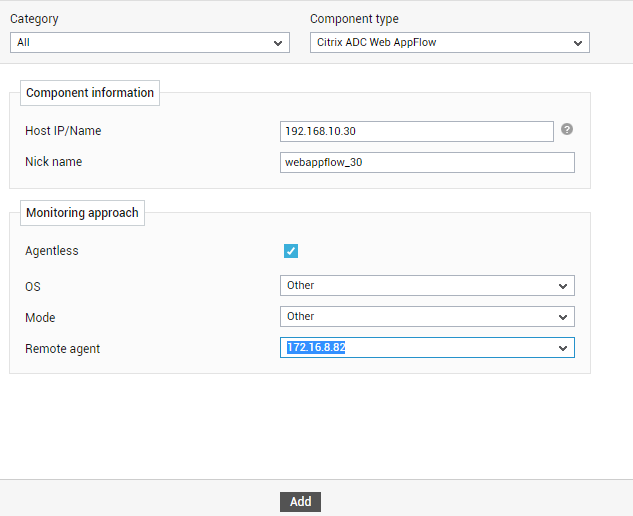

    Figure 2 : Adding a Web AppFlow Device

  3. Specify the IP address and Nick name of the AppFlow-enabled ADC device to be monitored in Figure 2. Then, pick a Remote Agent from Figure 2 to assign to the AppFlow Device.

    Note:

    Select a remote agent that has been deployed on a Windows host for the purpose of AppFlow monitoring.

  4. Finally, click the Add button.
