Load Evaluator Index - Cloud Test

How often should the test be executed.

The IP address of the host for which this test is to be configured.

Refers to the port at which the specified host listens to.

When configuring the Citrix Cloud service, you should have created an API client on the cloud, so that any external program can communicate with the cloud. This API client is tied to a customer ID. The Citrix Cloud API requires this customer ID, when calling REST APIs. To determine the customer ID that is mapped to the API client you created, refer to Determining the Customer ID Mapped to an API Client.

When creating the API client on the cloud, you will be provided with an ID and a Secret for your client. Downloading this information saves a file named secureclient.csv. The eG agent uses the ID and Secret stored in this file to connect to the Citrix Cloud API. This is why, you will have to configure the Citrix Cloud Connectivity test with the full path to the secureclient.csv.

Note:

Before specifying the path of the secureclient.csv file, make sure that the API client is created and this file downloaded by a valid Citrix cloud user with Read-only administrator rights to virtual apps/desktops. To know how to create this user on the cloud, refer to theCreating a New Citrix Cloud User for Monitoring PurposestopicTo know how this user can create an API client on the cloud, refer to Creating API Client on the Citrix Cloud.

If the Citrix Cloud Connector communicates with the Citrix Cloud via a proxy, then, you also need to configure the eG agent on the connector with the proxy server details. This will enable the eG agent to connect to the Citrix cloud without a glitch, and pull metrics. To facilitate this communication. do the following:

• Specify the IP address/fully-qualified host name of the proxy server, against PROXY HOST.

• Specify the port at which the Proxy server listens for requests from the eG agent, against PROXY PORT.

By default, both these parameters are set to none, indicating that the eG agent does not communicate with the Citrix Cloud via a proxy.

Note:

• Before configuring these test parameters, make sure that the proxy server settings are imported to the eG agent side from the connector. To know how to achieve this, refer to Configuring the eG Agent with Proxy Server Settings.

• To know what values you should configure these parameters with, do the following:

  • Login to the system hosting the Citrix Cloud Connector being monitored.

  • Open the Internet Explorer browser on that system, and click on the icon provided at the right corner of that browser.

  • Clicking the icon will invoke a menu. Choose Internet Optionsfrom the menu. Then, select the Connections tab in the Internet Options window that appears.

  • Now, click the LAN Settings button. This will open the Local Area Network (LAN) Settings window. In the Proxy Server section of this window, you will find that the Use a proxy server for your LAN check box is enabled. Configure the PROXY HOST and PROXY PORT parameters with the IP address and port numbers displayed in the Address and Port text boxes (respectively) under that check box.

  • If the Use a proxy server for your LAN check box is not enabled, then it means that the connector is not communicating with the cloud via a proxy. In this case, you need not change the default configuration for these parameters.

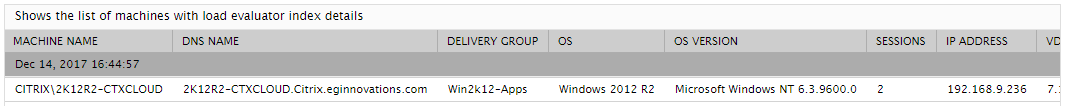

By default, this flag is set to Yes indicating that this test reports metrics for each delivery group that contains machines running a particular server OS. The delivery group-level insight into the load evaluator index enables administrators to gauge the overall load on every delivery group. If required, you can change the status of this flag to No; in this case, this test will report metrics for every server OS machine in a delivery group. The machine-level insight into load enables administrators to understand whether/not load is uniformly balanced across the different server OS machines, and accurately identify the machine that is overloaded.

By default, US is chosen from this list indicating that this test will report metrics for those organizations whose users and resources are located in the United States region. Sometimes, the eG agent may collect the required metrics with a minor time delay due to the users and resources being monitored are in a different region. To avoid such time delays and to ensure end-user proximity and offer the best user experience, administrators are allowed to change the region based on where most of the users and resources are located. For instance, if the users and resources are located in the Asia-Pacific South region or approximately nearer to the Asia-Pacific South region, then, administrators need to choose 'AP-S' from this list. However, from this list, administrators are required to choose only the region that they had chosen when they signed in for the first time after onboarding their organization to the target Citrix Cloud.
