Windows Service Status - OS Test

In some virtual environments, administrators may want to mandate the availability of a set of Windows services on all Frame desktops. In such environments, to ensure uninterrupted access to the mandatory services, administrators need to check the availability of the services on every Frame desktop. To cater to this need, this test allows administrators to configure only the mandatory services of their choice for monitoring. This way, administrators can closely monitor the availability of the services of their interest and instantly know the number of services that are not available/running (if available) on the Frame desktop.

This test does not only reveal the availability of services, that have been configured for monitoring, on each Frame desktop but also reports the count of available services based on their startup types. This helps administrators to know if the automatic services have started and are running on the virtual desktop as configured. If not, administrators can rapidly initiate the remedial measures to start the services quickly before it impacts overall performance of the virtual desktop and the user experience on the virtual desktop. Furthermore, administrators can use the detailed diagnosis provided by this test to know the details of the configured services that are present and inactive on each Frame virtual desktop.

Target of the test : A Dizzion Frame desktop Group

Agent deploying the test : A remote agent

Output of the test : One set of results will be reported for every Dizzion Frame desktop.

Configurable parameters for the test:

Parameter	Description
Test Period	How often should the test be executed.
Host	The nick name of the Dizzion Frame Desktops component for which this test is to be configured.
Port	Refers to the port at which the specified host listens to. By default, this is NULL.
Inside View Using	To obtain the 'inside view' of performance of the cloud-hosted Dizzion Frame desktops - i.e., to measure the internal performance of the Dizzion Frame virtual desktops - this test uses a light-weight eG VM Agent software deployed on each of the desktops. Accordingly, this parameter is by default set to eG VM Agent.
Report Powered OS	This flag is relevant only for those tests that are mapped to the Inside View of Desktops layer. If this flag is set to Yes (which is the default setting), then the 'inside view' tests will report measures for even those Dizzion Frame desktops that do not have any users logged in currently. Such desktops will be identified by their name and not by the username_on_virtualdesktopname. On the other hand, if this flag is set to No, then this test will not report measures for those Dizzion Frame desktops to which no users are logged in currently.
Is Cloud VMs	Since this test runs for a 'Dizzion Frame Desktops' component, this flag is set to Yes by default.
Report By User	This flag is set to Yes by default. The value of this flag cannot be changed. This implies that the virtual machines in VDI environments will always be identified using the login name of the user. In other words, in VDI environments, this test will, by default, report measures for every username_on_virtualmachinename.
Services	Provide a comma-separated list of services that need to be monitored by this test. When configuring a service name to exclude, make sure that you specify the Display Name of the service, and not the service Name you see in the Services window on your desktop. For example, eGAgentMon,eGurkhaTomcat
DD Frequency	Refers to the frequency with which detailed diagnosis measures are to be generated for this test. The default is 1:1. This indicates that, by default, detailed measures will be generated every time this test runs, and also every time the test detects a problem. You can modify this frequency, if you so desire. Also, if you intend to disable the detailed diagnosis capability for this test, you can do so by specifying none against DD FREQUENCY.
Detailed Diagnosis	To make diagnosis more efficient and accurate, eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option. The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled: The eG manager license should allow the detailed diagnosis capability Both the normal and abnormal frequencies configured for the detailed diagnosis measures should not be 0.

Measurements reported by the test:

Measurement	Description	Measurement Unit	Interpretation
Services configured	Indicates the total number of services that have been configured for monitoring against the SERVICES parameter.	Number
Services present	Indicates how many services that have been configured for monitoring are actually present on this desktop.	Number
Automatic services present	Indicates how many services, with startup type as automatic, that have been configured for monitoring are actually present on this desktop.	Number	The detailed diagnosis of this measure lists the services (with startup type as automatic) that are currently present on the desktop.
Automatic services not running	Indicates how many services, with startup type as automatic, that have been configured for monitoring are not running on this desktop.	Number	Use the detailed diagnosis of this measure to determine which services (with startup type as automatic) are not currently running on the desktop.
Manual services present	Indicates how many services, with startup type as manual, that have been configured for monitoring are actually present on this desktop.	Number	The detailed diagnosis of this measure lists the services (with startup type as manual) that are currently present on the desktop.
Manual services not running	Indicates how many services, with startup type as manual, that have been configured for monitoring are not running on this desktop.	Number	Use the detailed diagnosis of this measure to determine which services (with startup type as manual) are not currently running on the desktop.
Total services not running	Indicates the total number of Windows services, that have been configured for monitoring, are not currently running on this desktop.	Number	This measure is the sum of Automatic services not running and Manual services not running measures.

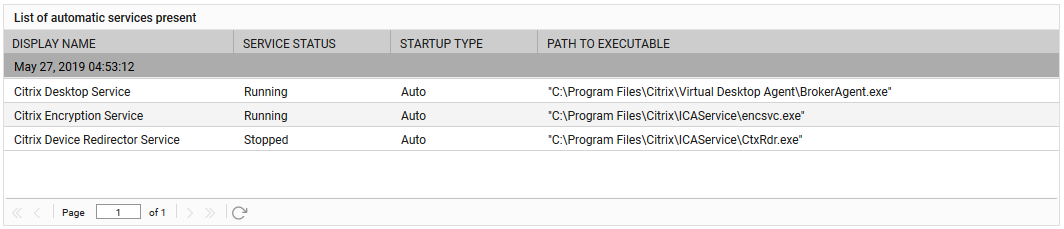

The detailed diagnosis of the Automatic services present measure lists the display name, current status and startup type of the services, and the complete path to the executable that controls the services.

Figure 1 : The detailed diagnosis of the Automatic services present measure

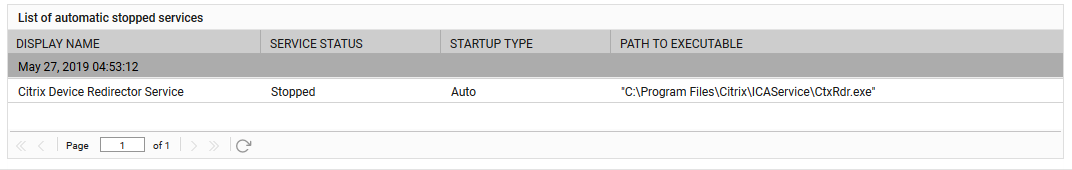

The detailed diagnosis of the Automatic services not running measure lists the display name, current status and startup type of the services, and the complete path to the executable that controls the services.

Figure 2 : The detailed diagnosis of the Automatic services not running measure

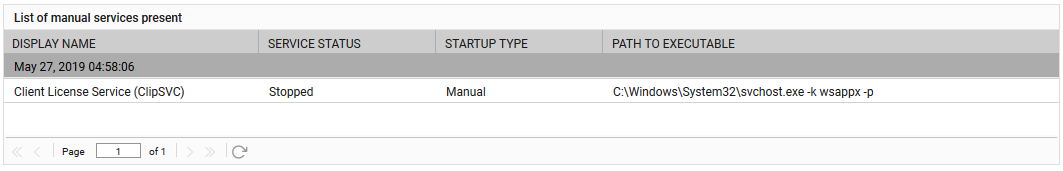

The detailed diagnosis of the Manual services present measure lists the display name, current status and startup type of the services, and the complete path to the executable that controls the services.

Figure 3 : The detailed diagnosis of the Manual services present measure

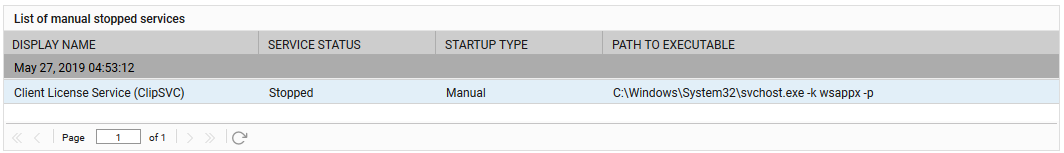

The detailed diagnosis of the Manual services not running measure lists the display name, current status and startup type of the services, and the complete path to the executable that controls the services.

Figure 4 : The detailed diagnosis of the Manual services not running measure
