The FortiGate Firewall VPN Layer

The tests mapped to this layer (see Figure 1), monitor:

  • the current state of each VPN tunnel;
  • the amount of data transmitted/received through each VPN tunnel;
  • the current state of each SSL VPN tunnel;
  • the count of the users logged in through the SSL VPN;
  • the number of users currently active on each SSL VPN tunnel;
  • the number of sessions currently active on each SSL VPN tunnel;
  • the rate at which data was transmitted/received for each user through the SSL VPN using the tunnel mode;
  • the number of users are currently logged in through the SSL VPN using tunnel mode;
  • the number of users actually logged out of the SSL VPN;

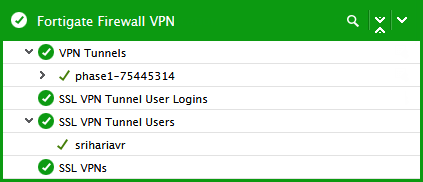

Figure 1 : The tests associated with the Fortigate Firewall VPN layer
