MTA Local Queues Test

This test reports the performance metrics pertaining to the local queue on a GroupWise Message Transfer Agent (MTA).

Target of the test : A GWMTA application

Agent deploying the test : A remote agent

Outputs of the test : One set of results for every domain specified.

Configurable parameters for the test
Parameter Description

Test Period

How often should the test be executed.

Host

The IP address of the host for which this test is to be configured.

Port

The port at which the server listens.

SNMPPort

The port at which the monitored target exposes its SNMP MIB; The default value is 161.

SNMPVersion

By default, the eG agent supports SNMP version 1. Accordingly, the default selection in the SNMPversion list is v1. However, if a different SNMP framework is in use in your environment, say SNMP v2 or v3, then select the corresponding option from this list.

SNMPCommunity

The SNMP community name that the test uses to communicate with the firewall. This parameter is specific to SNMP v1 and v2 only. Therefore, if the SNMPVersion chosen is v3, then this parameter will not appear.

UserName

This parameter appears only when v3 is selected as the SNMPVersion. SNMP version 3 (SNMPv3) is an extensible SNMP Framework which supplements the SNMPv2 Framework, by additionally supporting message security, access control, and remote SNMP configuration capabilities. To extract performance statistics from the MIB using the highly secure SNMP v3 protocol, the eG agent has to be configured with the required access privileges – in other words, the eG agent should connect to the MIB using the credentials of a user with access permissions to be MIB. Therefore, specify the name of such a user against this parameter.

Context

This parameter appears only when v3 is selected as the SNMPVersion. An SNMP context is a collection of management information accessible by an SNMP entity. An item of management information may exist in more than one context and an SNMP entity potentially has access to many contexts. A context is identified by the SNMPEngineID value of the entity hosting the management information (also called a contextEngineID) and a context name that identifies the specific context (also called a contextName). If the Username provided is associated with a context name, then the eG agent will be able to poll the MIB and collect metrics only if it is configured with the context name as well. In such cases therefore, specify the context name of the Username in the Context text box.  By default, this parameter is set to none.

AuthPass

Specify the password that corresponds to the above-mentioned Username. This parameter once again appears only if the SNMPversion selected is v3.

Confirm Password

Confirm the AuthPass by retyping it here.

AuthType

This parameter too appears only if v3 is selected as the SNMPversion. From the AuthType list box, choose the authentication algorithm using which SNMP v3 converts the specified username and password into a 32-bit format to ensure security of SNMP transactions. You can choose between the following options:

  • MD5 - Message Digest Algorithm
  • SHA - Secure Hash Algorithm
  • SHA224 - Secure Hash Algorithm 224 bit
  • SHA256 - Secure Hash Algorithm 256 bit
  • SHA384 - Secure Hash Algorithm 384 bit
  • SHA512 - Secure Hash Algorithm 512 bit

EncryptFlag

This flag appears only when v3 is selected as the SNMPversion. By default, the eG agent does not encrypt SNMP requests. Accordingly, the this flag is set to No by default. To ensure that SNMP requests sent by the eG agent are encrypted, select the Yes option.

EncryptType

If the EncryptFlag is set to Yes, then you will have to mention the encryption type by selecting an option from the EncryptType list. SNMP v3 supports the following encryption types:

  • DES - Data Encryption Standard
  • 3DES - Triple Data Encryption Standard
  • AES - Advanced Encryption Standard
  • AES128 - Advanced Encryption Standard 128 bit
  • AES192 - Advanced Encryption Standard 192 bit
  • AES256 - Advanced Encryption Standard 256 bit

EncryptPassword

Specify the encryption password here.

Confirm Password

Confirm the encryption password by retyping it here.

Timeout

Specify the duration (in seconds) within which the SNMP query executed by this test should time out in this text box. The default is 10 seconds.

Data Over TCP

By default, in an IT environment, all data transmission occurs over UDP. Some environments however, may be specifically configured to offload a fraction of the data traffic – for instance, certain types of data traffic or traffic pertaining to specific components – to other protocols like TCP, so as to prevent UDP overloads. In such environments, you can instruct the eG agent to conduct the SNMP data traffic related to the monitored target over TCP (and not UDP). For this, set this flag to Yes. By default, this flag is set to No.

EngineID

This parameter appears only when v3 is selected as the SNMPVersion. Sometimes, the test may not report metrics when AES192 or AES256 is chosen as the Encryption type. To ensure that the test report metrics consistently, administrators need to set this flag to Yes. By default, this parameter is set to No.

MTADomainName

The name of the domain on which the MTA has been installed. Refer to Determining Domain Name of MTA to know how to find out the domain name of MTA.

Measurements made by the test
Measurement Description Measurement Unit Interpretation

Router queue length

Indicates the number of messages in the routing queue. These messages will be available in the gwinprog directory, which is the MTA "in progress" queue directory.

Number

A consistently high value indicates a problem in delivering messages. This value should be preferably low.

Postoffice messages hold queue length

Indicates the number of messages in local post office and gateway queues. Such messages will be available in the "postx" directory, which is the holding directory for post offices.

Number

If the value is high, check for closed post offices.

Postoffice messages hold queue size

Indicates the total size of the messages in the local post offices.

KB

If the value is high, check for closed post offices.

Domain messages hold queue length

Indicates the number of messages in the other domain queues. Such messages will be available in the "domainx" directory, which is the holding directory for other domains.

Number

If the value is high, check for closed domains.

Domain messages hold queue size

Indicates the total size of the messages in other domain queues.

KB

If the value is high, check for closed domains.

Gateway messages hold queue length

Indicates the number of messages in gateway queues. Such messages will be available in the "gatewayx" directory, which is the holding directory for gateways.

Number

If the value is high, check for closed gateways.

Gateway messages hold queue size

Indicates the size of all the messages in gateway queues.

KB

If the value is high, check for closed gateways.

Determining Domain Name of MTA

To know the domain name of an MTA, do the following:

  1. Execute Novell's ConsoleOne utility. This utility allows you to manage eDirectory objects, rights, and schema, and Netware file system resources.
  2. Upon logging into the console, you will find a tree-structure in the left pane that hosts an NDS container (see Figure 1). Expanding this container will reveal the eDirectory trees that you are currently logged into. Expand the eDirectory tree that hosts the MTA application to be monitored. Upon expanding, the list of contexts defined within the tree will appear. Next, expand the context, which houses the MTA application.

    MTAdomainname

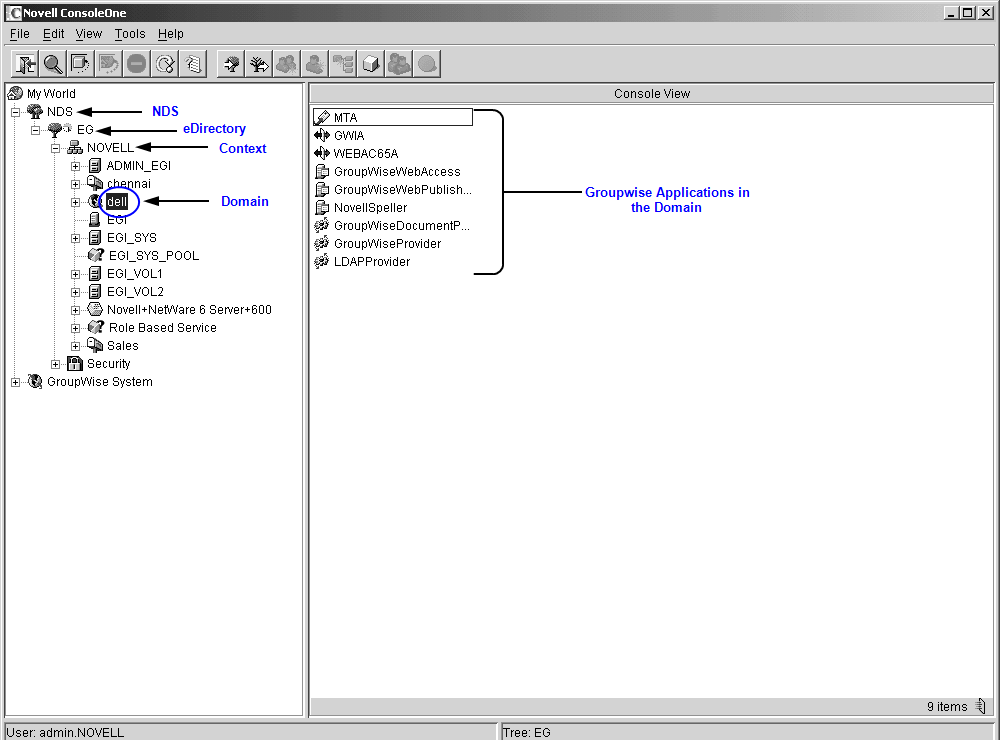

    Figure 1 : The Novell ConsoleOne window

  3. The complete list of objects within the selected context will then be available to you. The objects in the list that are prefixed by the domain symbol represent the domains within the context (see Figure 1). Now, click on the domain that hosts the MTA application to be monitored. When this is done, all the Groupwise applications that exist in the domain will appear in the right pane (see Figure 1).
  4. From the right pane, select the MTA application to be monitored, right-click on it, and select Properties (see Figure 2). Click on the GroupWise tab to open the Identification tab page. In this page, look for the domain name of the MTA application (see Figure 3).

    MTAdomainname1

    Figure 2 : Selecting the Properties option from the MTA application’s right-click menu

    MTAdomainname2

    Figure 3 : Viewing the MTA domain name
