Configuring Tests for the Microsoft Azure DNS Zones

Follow the steps below to configure tests for the managed Azure DNS Zones:

1. Once the Microsoft Azure DNS Zones component is added to eG Enterprise,Figure 1 will appear displaying the component that was just added.



   Figure 1 : The newly added MS Azure DNS Zones component

2. To configure tests for this component, click on the icon corresponding to it in Figure 1. Figure 2 will then appear displaying the tests configured by default and the unconfigured tests for this component.

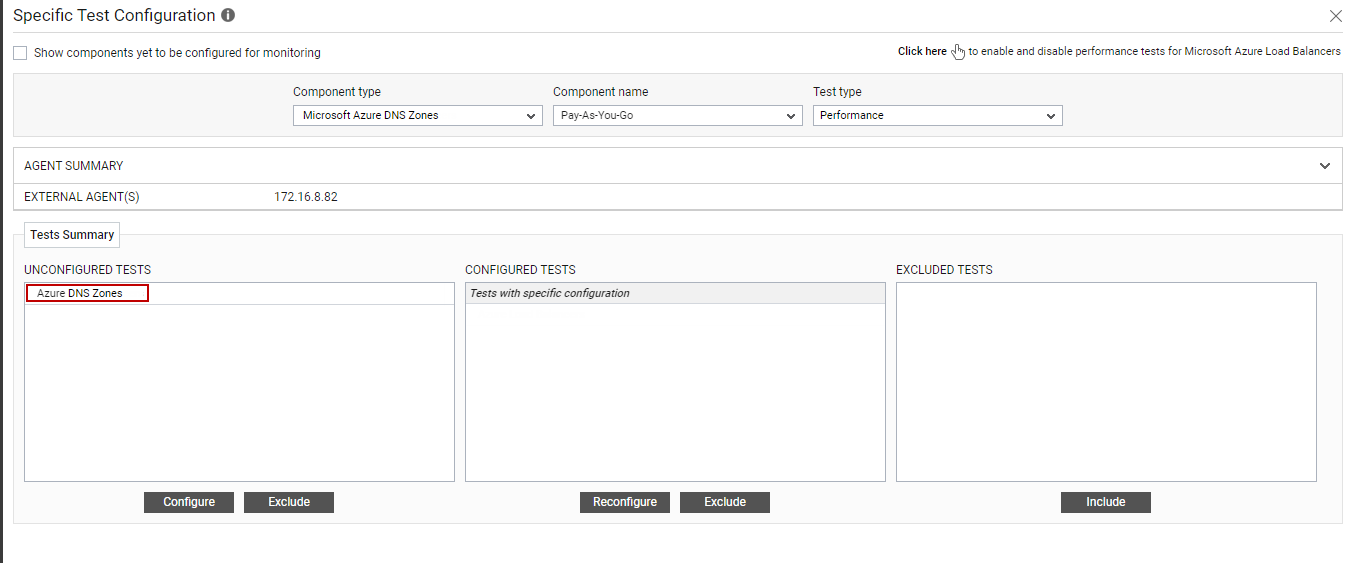

   Figure 2 : The list of unconfigured tests for the MS Azure DNS Zones component

3. From the UNCONFIGURED TESTS list, select the Azure DNS Zones test and click on the Configure button below to configure it. Figure 3 will then appear.

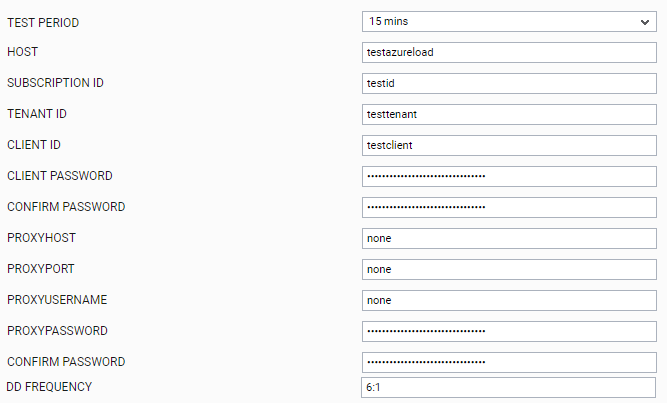

   Figure 3 : Configuring the Azure DNS Zones Test

   Refer to Azure DNS Zone Test for more details on how to configure this test.

4. Once you configure the test, click on the Update button to save the changes. Doing so will automatically configure all the other tests listed in the UNCONFIGURED TESTS box of Figure 2.

You can now proceed to view the performance results that eG reports for the managed Azure DNS Zones by switching to / logging into the eG monitoring console.
