RDS Disconnects Test
A user session is terminated when a user logs off from the Citrix/Microsoft RDS server or when the session is abruptly interrupted (e.g., due to server, network, or application errors). When a user logs off, all the applications started by the user are terminated. However, when a user disconnects, the applications started by the user will keep running on the server consuming resources. Hence, the number of disconnected sessions on a Citrix/Microsoft RDS server should be kept to a minimum. Abrupt disconnects can significantly impact the end user experience, and hence, it is important to monitor the number of disconnected sessions at any point of time.
Target of the test : A Microsoft RDS server
Agent deploying the test : An internal agent
Outputs of the test : One set of results is reported for each Microsoft RDS server being monitored
| Parameters | Description |
|---|---|
|
Test period |
This indicates how often should the test be executed. |
|
Host |
The host for which the test is to be configured. |
|
Port |
Refers to the port used by the Microsoft RDS server . |
|
Reconnectperiod |
This parameter is used by the test while computing the value for the Quick reconnects measure. This measure counts all the users who reconnected to the Microsoft RDS server within the short period of time (in minutes) specified against Reconnectperiod. |
|
Report by Domain Name |
By default, this flag is set to Yes. This implies that by default, the detailed diagnosis of this test will display the domainname\username of each user who logged into the Microsoft RDS server. This way, administrators will be able to quickly determine which user logged in from which domain. If you want the detailed diagnosis to display the username alone, then set this flag to No. |
|
DD Frequency |
Refers to the frequency with which detailed diagnosis measures are to be generated for this test. The default is 1:1. This indicates that, by default, detailed measures will be generated every time this test runs, and also every time the test detects a problem. You can modify this frequency, if you so desire. Also, if you intend to disable the detailed diagnosis capability for this test, you can do so by specifying none against dd frequency. |
|
Detailed Diagnosis |
To make diagnosis more efficient and accurate, the eG Enterprise embeds an optional detailed diagnostic capability. With this capability, the eG agents can be configured to run detailed, more elaborate tests as and when specific problems are detected. To enable the detailed diagnosis capability of this test for a particular server, choose the On option. To disable the capability, click on the Off option. The option to selectively enable/disable the detailed diagnosis capability will be available only if the following conditions are fulfilled:
|
| Measurement | Description | Measurement Unit | Interpretation |
|---|---|---|---|
|
Total disconnected sessions |
Indicates the total number of sessions that are in the disconnected state. |
Number |
|
|
New disconnects |
Indicates the number of sessions that were disconnected in the last measurement period |
Number |
The detailed diagnosis of this measure, if enabled lists the users who have recently disconnected. |
|
Quick reconnects |
Indicates the number of users who reconnected soon after a disconnect.
|
Number |
The detailed diagnosis of this measure, if enabled lists the users who have reconnected quickly. |
The detailed diagnosis for the New disconnects measurement indicates the user, session ID, and client type for each newly disconnected session. This information can be used to track whether specific users are being disconnected often (see Figure 1).

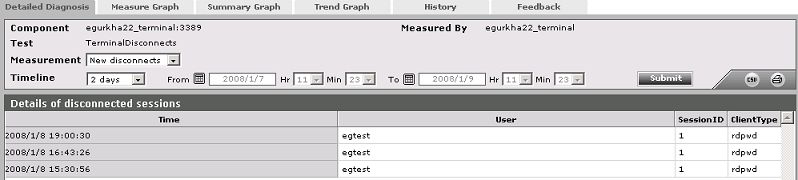

Figure 1 : The detailed diagnosis of the New disconnects measure
The detailed diagnosis for the Quick reconnects measurement indicates the user, session ID, client type, the exact time at which the session disconnected, and duration of the disconnect, for each session that quickly reconnected. This information can be used to track whether specific users are being disconnected often (see Figure 2).

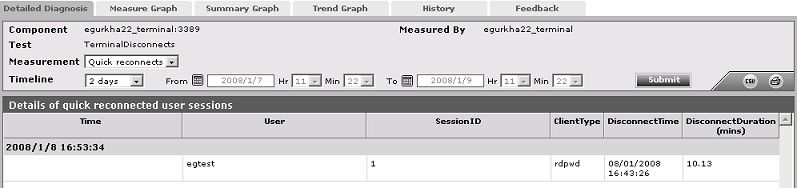

Figure 2 : The detailed diagnosis of the Quick reconnects measure
