Modifying an Existing Panel

To modify an existing panel in the User Experience Dashboard, click the icon available in the top right corner of the panel. Any default or custom panel can be picked for editing. However, the procedure for making changes to a panel will differ from one panel to another.

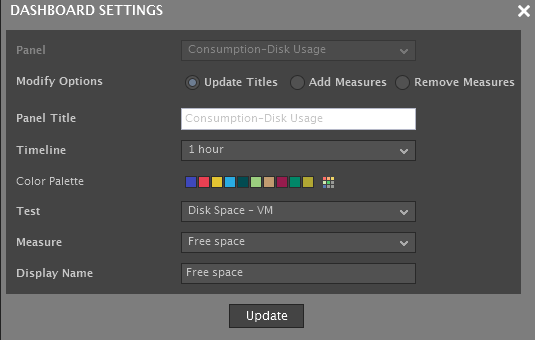

For instance, if you choose the Consumption-Disk Usage panel for modification, Figure 1 will appear.

Figure 1 : Modifying a panel in the User Experience Dashboard.

From Figure 1, it can be inferred that you can modify the Panel Title, Add measures to the widget and remove measures from the widget. You can also change the timeline of the graph. and change the color palette of the graph, if applicable.

Now, take the case of the Consumption – Disk Usage panel (See Figure 1). By default, the Modify Options flag will be set to Update Titles. You can change the tite of the panel using the panel Title text box and click the Update button. If this panel is chosen for modification, the Panel Title can be changed (see Figure 1) by selecting the Update Titles option. Alongside, you can also select a Test and Measure that have already been configured for display in the Consumption – Disk Usage panel, and change the Display Name of that measure (see Figure 1).

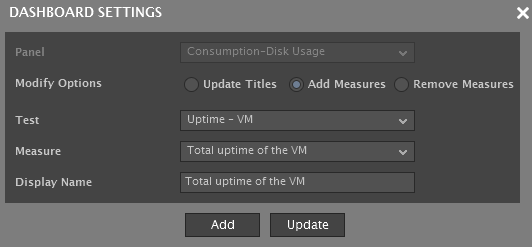

In the same way, to add new measures to an existing panel, you can do so by setting the Modify Options flag to Add Measures.

Figure 2 : Adding new measures to the Consumption – Network panel

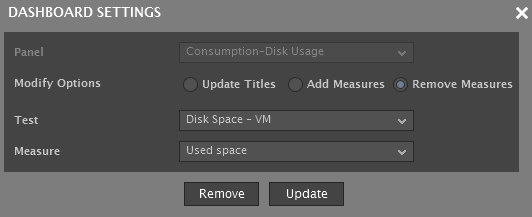

Similarly, to remove a measure from the Consumption - Disk Usage panel, set the Modify Options flag to Remove Measures.

Figure 3 : Deleting an existing measure from the Consumption – Network panel

The table lists all the default panels of the User Experience Dashboard and indicates what can be changed in each panel.

Default Panel

What can be changed

ICA Session Data
  • Panel Title can be updated.
  • Measure Display Name can be changed.
  • New measures can be added.
  • Existing measures can be deleted.

Top CPU processes of user
  • Panel Title can be updated.
  • The Color palette can be changed.

Alerts for this user
  • Panel Title can be updated.
  • The No of records can be changed – i.e., the number of recent alerts to be displayed for a user can be set.

Top memory processes of user
  • Panel Title can be updated.
  • The Color palette can be changed.

Top processes by disk busy
  • Panel Title can be updated.
  • The Color palette can be changed.

Consumption – CPU/Memory Usage
  • Panel Title can be updated.
  • Measure Display Name can be changed.
  • The Color palette can be changed.
  • The Timeline can be altered.
  • New measures can be added.
  • Existing measures can be deleted.

Consumption – Disk I/O
  • Panel Title can be updated.
  • Measure Display Name can be changed.
  • New measures can be added.
  • Existing measures can be deleted.

Consumption – Disk Usage
  • Panel Title can be updated.
  • Measure Display Name can be changed.
  • The Color palette can be changed.
  • The Timeline can be altered.
  • New measures can be added.
  • Existing measures can be deleted.

Demand – TCP Connections
  • Panel Title can be updated.
  • Measure Display Name can be changed.
  • The Color palette can be changed.
  • The Timeline can be altered.
  • New measures can be added.
  • Existing measures can be deleted.

After making changes to a panel, remember to click the Update button to save the changes.
