Configuring tests for OLVM Manager 4.x

1. After adding a OLVM Manager 4.x component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

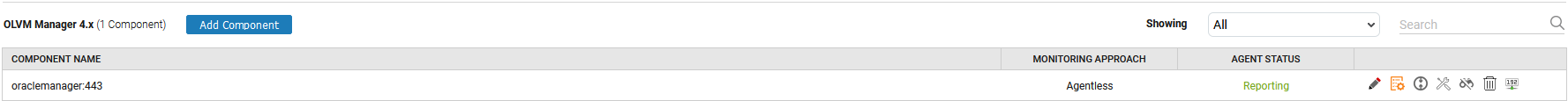

   Figure 1 : Listing the newly added OLVM Manager 4.x components

2. To collect the performance metrics, you may need to configure the tests that are mapped to the OLVM Manager 4.x component. To configure the tests that need manual configuration, click on the icon in Figure 1.

3. Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

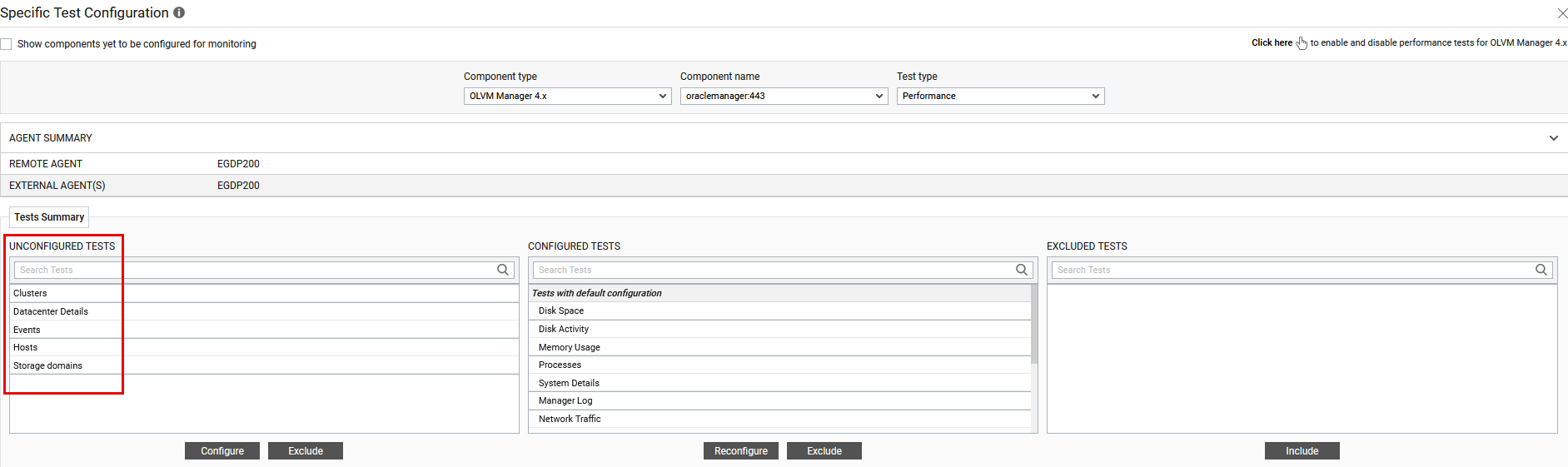

   Figure 2 : The list of unconfigured tests for OLVM Manager 4.x component

4. Now, click on the Clusters test to configure it. To know how to configure this test, refer to

5. The remaining tests will be automatically configured once theClusters test is configured.

6. Once all the tests are configured, switch to the Monitor tab to view the performance metrics reported by the tests.
