Configuring Tests for the Panzura Cloud File System

After adding a Panzura Cloud File System component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

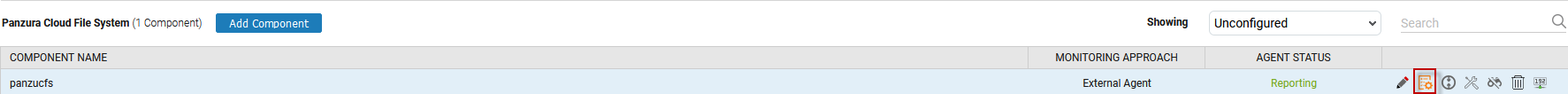

Figure 1 : Listing the newly added Panzura Cloud File System Component

To collect the performance metrics, you may need to configure the tests that are mapped to the Panzura Cloud File System component. To configure the tests that need manual configuration, click on the icon in Figure 1.

Figure 2 then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

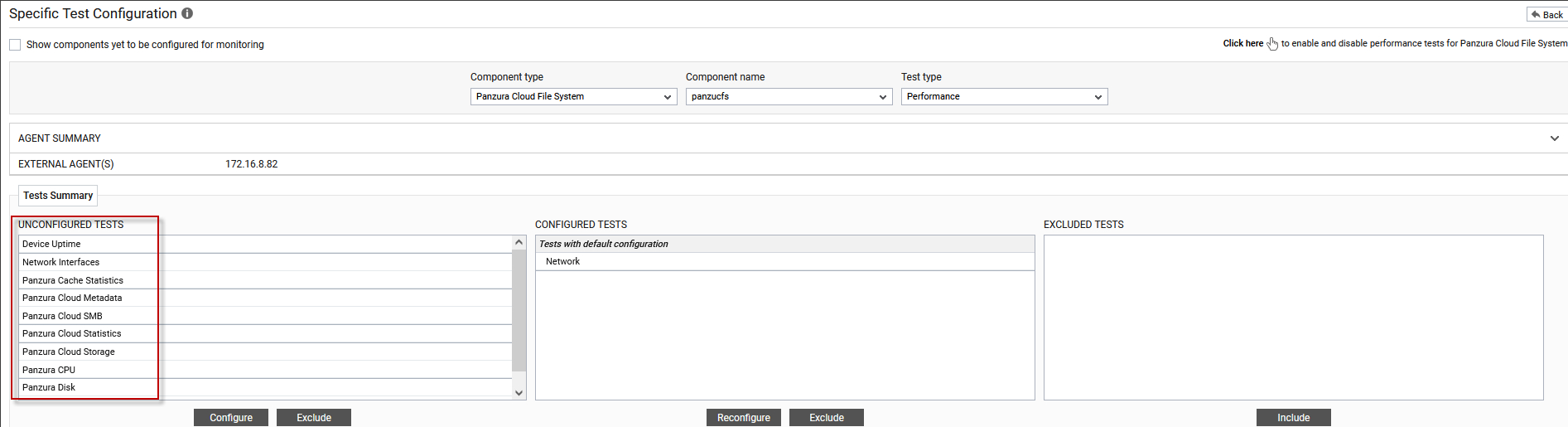

Figure 2 : The list of unconfigured tests for Panzura Cloud File System

Click on any of the tests in Figure 2 to configure it. For instance, if you click on the Panzura Cache Statistics Test, Figure 3 will appear.

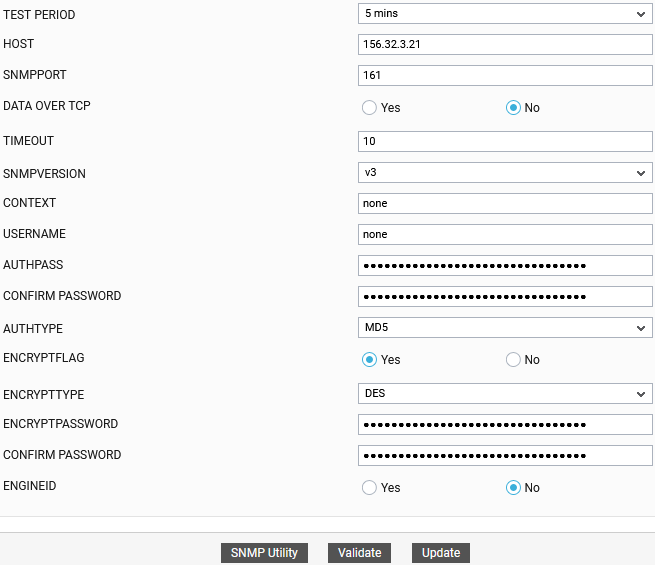

Figure 3 : Configuring the Panzura Cache Statistics Test

To know how to configure this test, refer to Panzura Cache Statistics Test

Click the Update button in  to update the test configuration. This will automatically configure all the other unconfigured tests for the Panzura Cloud File System component.
