User Satisfaction Trend Report

To evaluate user experience with a web application over time, administrators can use the User Satisfaction Trend report. A quick glance at this report will reveal the precise days/times during the given timeline when user experience has been less than satisfactory.

To generate this report, do the following:

  1. Login to eG Reporter.
  2. Follow the menu sequence: REPORTS BY FUNCTION -> Domain-specific Reports -> Web Application Monitoring -> Real User Monitoring -> User Satisfaction Trend.
  3. Figure 1 will then appear. Using this report, you can engage in a time-based user experience analysis on a web application that is part of a zone/segment/service. Indicate your choice by picking the one of the following options from the Analyze by list.

    • Component: If the Component option is chosen from the Analyze by list, then all components of the chosen Component Type will be listed in the Component list box. From this list box, select the components for which the report is to be generated. If the Component list consists of too many components, then viewing all the components and selecting the ones you need for report generation could require endless scrolling. To avoid this, you can click the button next to the Component list. The COMPONENTS pop up window will then appear using which you can view almost all the components in a single interface and select the ones for which the report is to be generated.
    • Zone: If the Zone option is chosen from the Analysis by list, then you would be required to select the Zone for which the report is to be generated. In addition, you will also have to indicate whether the report needs to include even those components that are included in the sub-zones of the chosen zone. If this is the case, you will have to set the Include sub-zones flag to Yes.
    • Service: Select this option if the components for which a report is to be generated are involved in the delivery of a business service. Then, select a Service.
    • Segment: Choose this option if the virtual hosts to be evaluated are part of a segment. Then, pick a Segment for analysis.
  4. Next, select the Component Type for which the report is to be generated.
  5. The Components list will then be populated with the components that belong to the chosen Component Type. Select a component of your choice from this list.

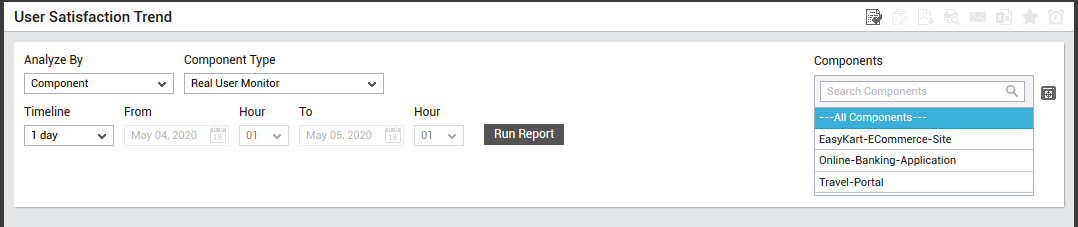

    Figure 1 : Generating the User Satisfaction Trend report

  6. Provide a report Timeline. You can either select a fixed timeline such as 1 hour, 2 days, etc., or choose the Any option from the Timeline list, and then provide a From and To date/time for report generation.

    Note:

    For every user registered with the eG Enterprise system, the administrator can indicate the maximum timeline for which that user can generate a report. Once the maximum timeline is set for a user, then, whenever that user logs into eG Reporter and attempts to generate a report, the Timeline list box in the report page will display options according to the maximum timeline setting of that user. For instance, if a user can generate a report for a maximum period of 3 days only, then 3 days will be the highest option displayed in the Timeline list - i.e., 3 days will be the last option in the fixed Timeline list. Similarly, if the user chooses the Any option from the Timeline list and proceeds to provide a start date and end date for report generation using the From and To specifications, eG Enterprise will first check if the user's Timeline specification conforms to his/her maximum timeline setting. If not, report generation will fail. For instance, for a user who is allowed to generate reports spanning over a maximum period of 3 days only, the difference between the From and To dates should never be over 3 days. If it is, then, upon clicking the Run Report button a message box will appear, prompting the user to change the From and To specification.

  7. In addition to the settings discussed above, this report comes with a set of default specifications. These settings are hidden by default. If you do not want to disturb these default settings, then you can proceed to generate the report by clicking the Run Report button soon after you pick a Measure. However, if you want to view and then alter these settings (if required), click on the icon. The default settings will then appear in the MORE OPTIONS drop down window (see Figure 2). The steps below discuss each of these settings and how they can be customized.

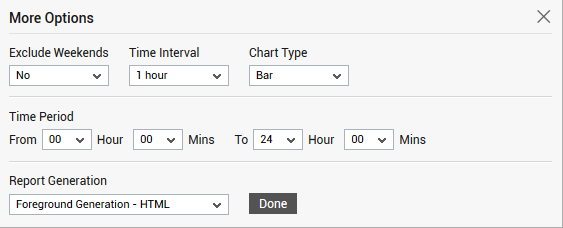

    Figure 2 : The default settings for generating the User Satisfaction Trend report

  8. If the timeline specified for the report needs to exclude the data collected during the Weekends, then set Exclude weekends to Yes. If not, select No.

    Note:

    By default, the weekend constitutes Saturday and Sunday. To override this default setting, do the following:

    • Edit the eg_report.ini file in the <EG_INSTALL_DIR>\manager\config directory.
    • In the [RUM_REPOTRS] section of the file, the EXCLUDE_WEEKEND parameter is set to Saturday, Sunday by default. You can modify this by setting the EXCLUDE_WEEKEND parameter to a comma-separated list of other days of the week - say Friday, Saturday.
    • Save the file after making the required changes.
  9. Specify the Time Interval for which this report is to be generated. By default, the Time Interval is 1 day. This implies that the experience of each user to the web application is consolidated together and the graph of this report is plotted for each day. If you choose 30 mins from the Time Interval list, then the graph will be plotted for every 30 minutes.

    Note:

    If you have chosen a Timeline of 1 week and above, it is not advisable to choose 30 mins and 1 hour options from the Time Interval list.

  10. From the Chart Type list, specify whether you wish to generate the report as a bar graph or as an area chart. By default, Bar option is chosen from this list indicating that the report will be generated as a bar graph, by default.
  11. Next, specify the start time and end time for report generation against the Time period field.
  12. In large environments, reports generated using months of data can take a long time to complete. Administrators now have the option of generating reports on-line or in the background. When a report is scheduled for background generation, administrators can proceed with their other monitoring, diagnosis, and reporting tasks, while the eG manager is processing the report. This saves the administrator valuable time. To schedule background processing of a report, select the Background Save - PDF option from the Report Generation list. In this case, a Report Name text box will appear, where you would have to provide the name with which the report is to be saved in the background. To process reports in the foreground, select the Foreground Generation - HTML option from this list.

    Note:

    • The Report Generation list will appear only if the EnableBackgroundReport flag in the [BACKGROUND_PROCESS] section of the eg_report.ini file (in the [EG_INSTALL_DIR]\manager\config directory) is set to Yes.
    • The default selection in the Report Generation list will change according to the Timeline specified for the report. If the Timeline set is greater than or equal to the number of days specified against the MinDurationForReport parameter in the [BACKGROUND_PROCESS] section of the eg_report.ini file, then the default selection in the Report Generation list will be Background. On the other hand, if the Timeline set for the report is lesser than the value of the MinDurationForReport parameter, then the default selection in the Report Generation list will be Foreground. This is because, the MinDurationForReport setting governs when reports are to be processed in the background. By default, this parameter is set to 2 weeks - this indicates that by default, reports with a timeline of 2 weeks and above will be processed in the background.
  13. Click the Done button if any changes were made to the More Options drop down window.
  14. Finally, click the Run Report button to generate the report.
  15. If the Report type is Foreground Generation - HTML, then Figure 3 will appear as soon as you click the Run Report button.

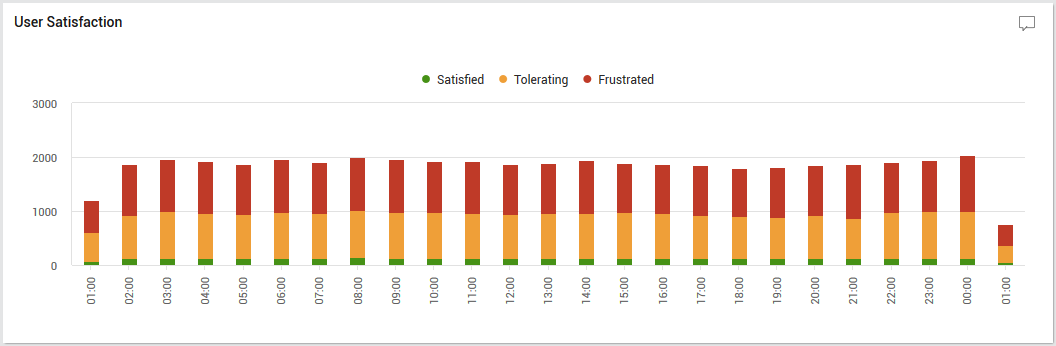

    Figure 3 : The generated User Satisfaction Trend report

    From the generated report in Figure 3, you can figure out the user experience with a web application over a chosen period of time. Hovering over each bar provides you with the exact number of transactions for which the user experience was satisfying, tolerating and frustrated. Clicking on a bar will reveal Figure 4.

    Figure 4 : The count of transactions with respect to user experience

    Clicking the icon against each type of transaction with respect to the user experience will lead you to the Real User Monitoring - Slice and Dice Analytics Report.

  16. If you have chosen Area option from the Chart Type list of Figure 2, then the report will be generated as shown in Figure 5

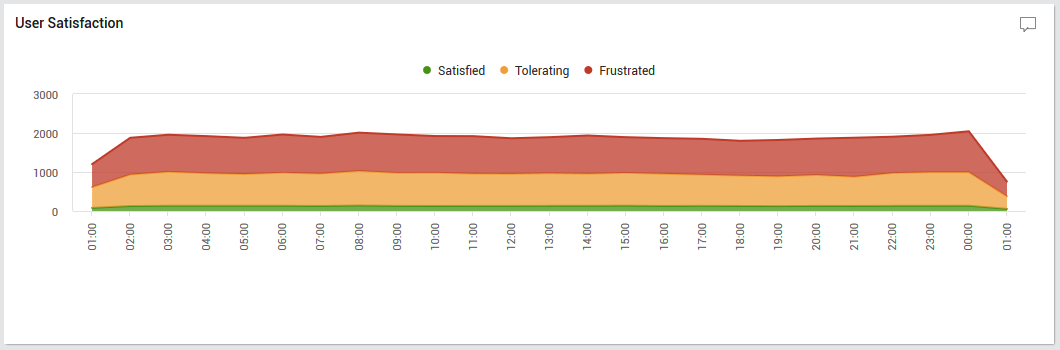

    Figure 5 : The generated report when Area option is chosen from the Chart Type list

  17. On the other hand, if the Background Save - PDF option is chosen from the Report Generation list, then clicking on the Run Report button will not generate the report and display it in this page for your benefit. Instead, a message indicating that the report is being processed in the background will appear. This will be accompanied by a link that will lead you to the page that lists all the reports that are being processed in the background, and their current status. If background report generation fails for a report, you can regenerate that report using this page, or can even delete that report if need be. On the other hand, if background processing successfully completes for your report, then, you can view a PDF of the report by clicking on the icon in that page.
