How to Monitor Transaction Processor (TP) Server Using eG Enterprise?

eG Enterprise monitors the TP server in an agent-based manner. An eG agent installed on the target server pulls out the critical measures pertaining to its performance. Using these metrics, administrator can continuously track the server performance and address the issues immediately, if any.

Managing the TP Server

To achieve this, do the following:

  1. Log into the eG administrative interface.
  2. Add the TP server manually using the COMPONENTS page (Infrastructutre -> Components -> Add/Modify). Remember that components manually added are managed automatically. Figure 1 clearly illustrates the process of adding a TP server.

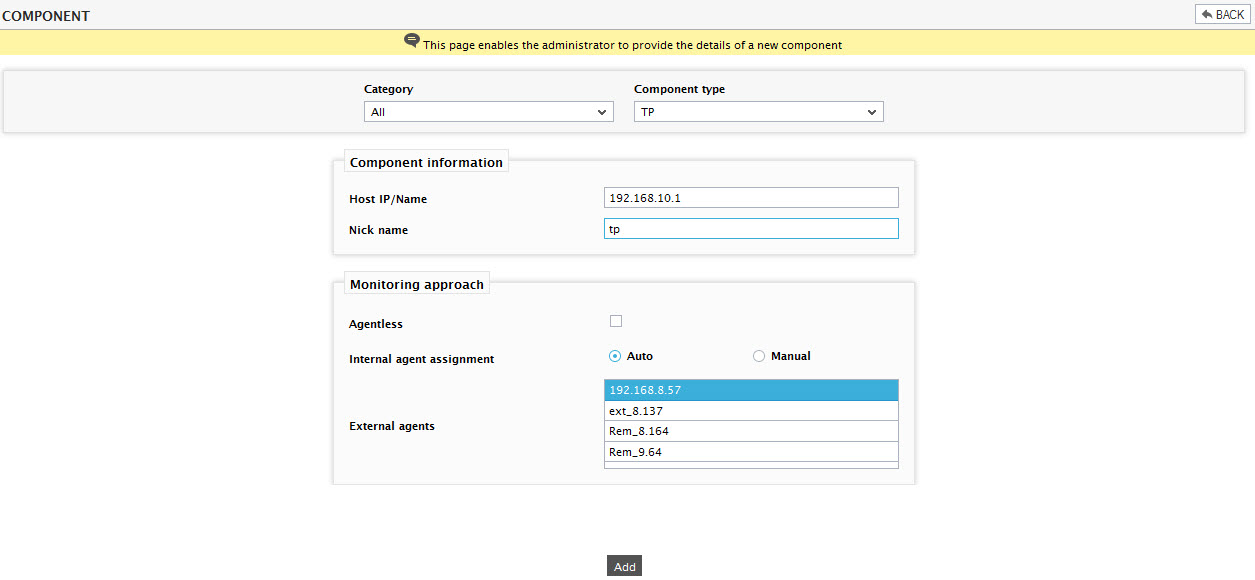

    Figure 1 : Adding a TP server

  3. Specify the Host IP/Name and Nick name for the TP server in the component page. Then, click on the Add button to register the changes.
  4. Then, try to sign out of the eG administrative interface. Upon doing so, Figure 2 will appear listing the unconfigured tests for the TP server.


    Figure 2 : The list of unconfigured tests for the TP server

  5. Click on the ComFedQuery test in Figure 2 to configure it. Click here to know how to configure this test.
  6. Finally, signout of the eG administrative interface.
