Identifying the host name and server instance name of the WildFly JBoss server running in Domain mode

In order to identify the host name of the WildFly JBoss instance that is to be monitored, do the following:

If the WildFly JBoss instance to be monitored is set to operate in Domain mode, then, by clicking the RunTime tab, you can identify whether the host is configured as the master or slave in a WildFly JBoss instance cluster.

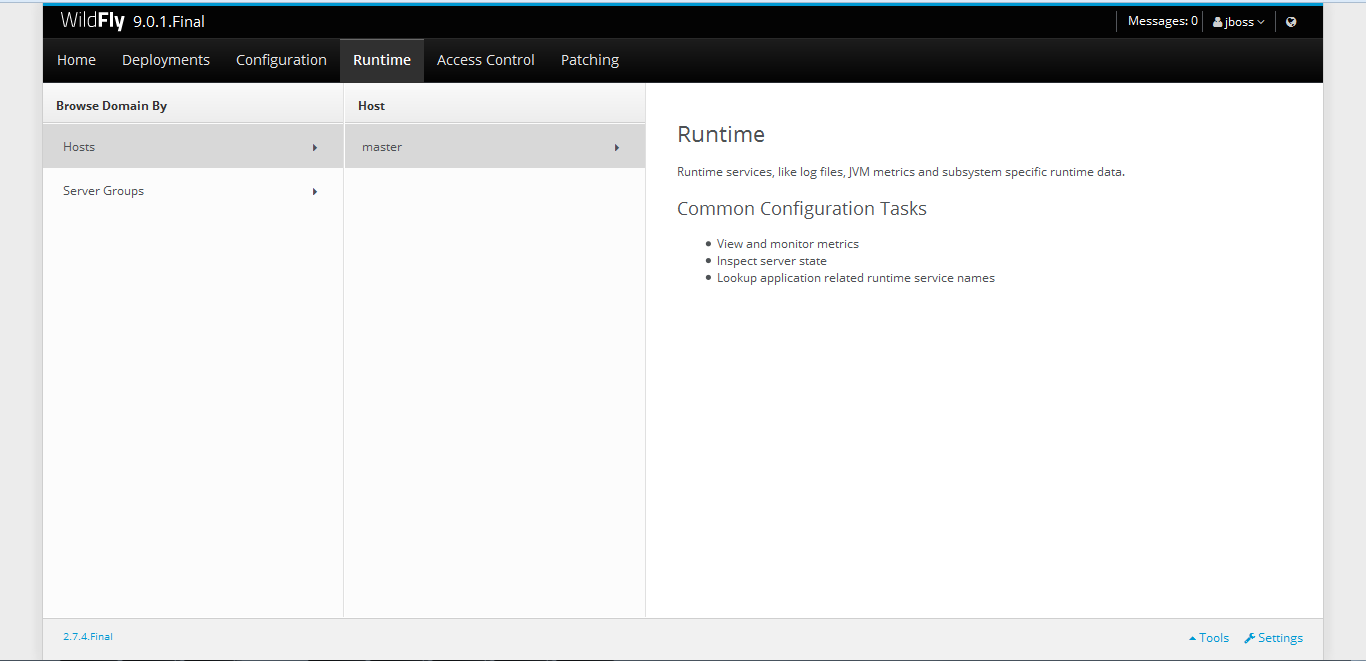

Figure 1 : Figuring out the host name of the WildFly JBoss instance to be monitored

Uopn clicking the Host, the groups to which the host is associated and the server instances that are available for that host can be identified.

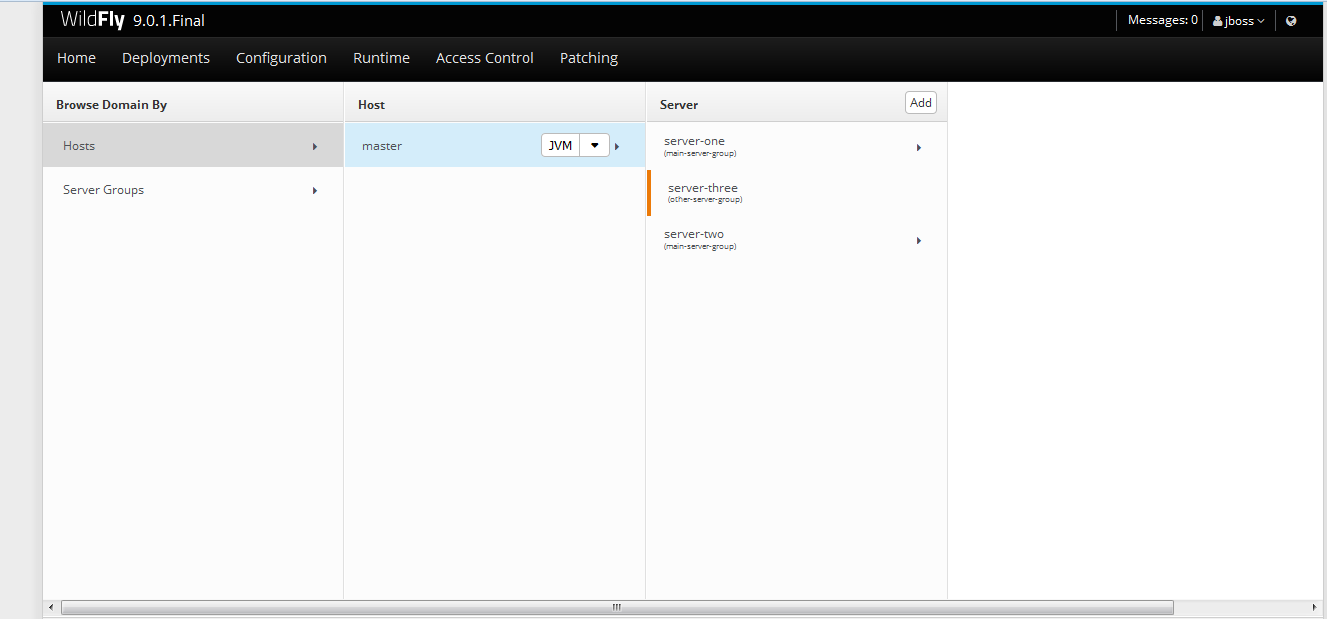

Figure 2 : Viewing the server instances associated with the host

Specify the name of the server instance that is to be monitored in the JBOSS SERVER INSTANCE NAME text box when you configure the tests for the WildFly JBoss server.

If the WildFly JBoss instance to be monitored is a standalone server, the name of the server can be viewed in the Runtime tab page.
