Configuring Tests for Network Path Target

After adding Network Path Target component, you will be redirected to the Components page (see Figure 1). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

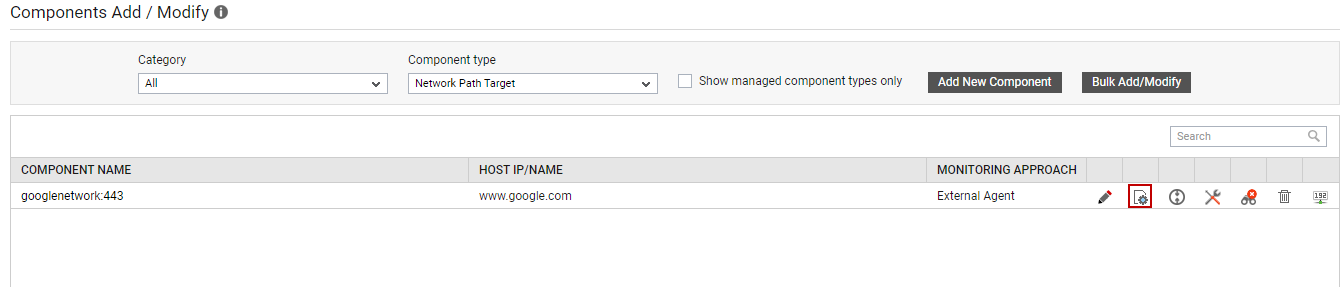

Figure 1 : Listing the newly added Network Path Target component

To collect the performance metrics, you may need to configure the tests that are mapped to the Network Path Target component. To configure the tests that need manual configuration, click on the icon in Figure 1.

Figure 2 then appears where the list of configured tests will be listed in the CONFIGURED TESTS list box.

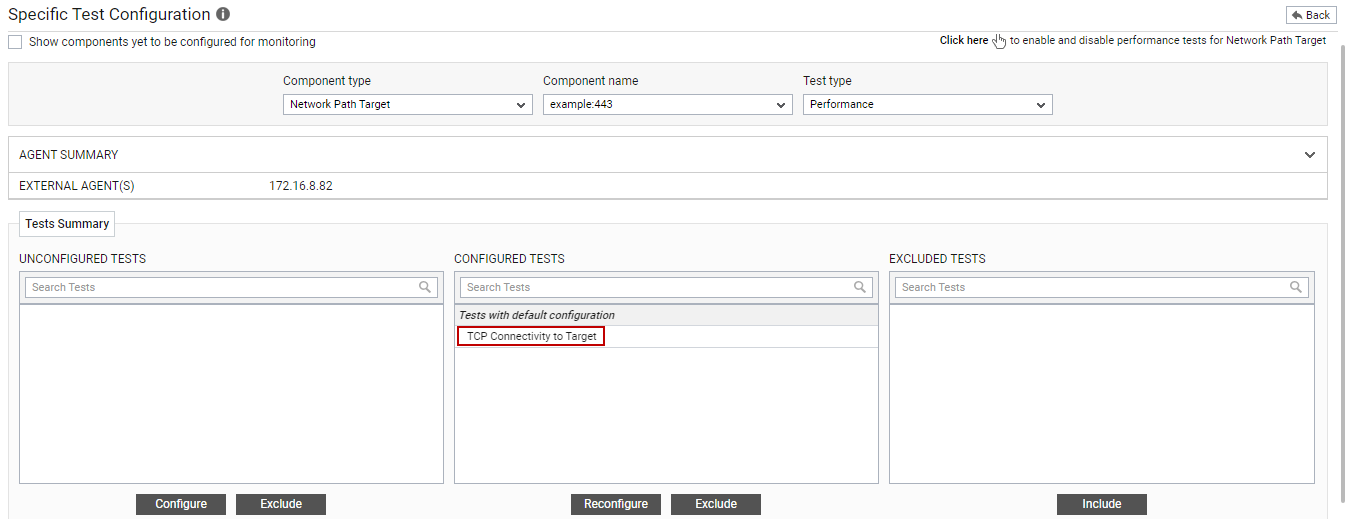

Figure 2 : The list of configured tests for Network Path Target component

Click on the test in Figure 2 to configure it. For instance, if you click on the TCP Connectivity to Target test, Figure 3 will appear.

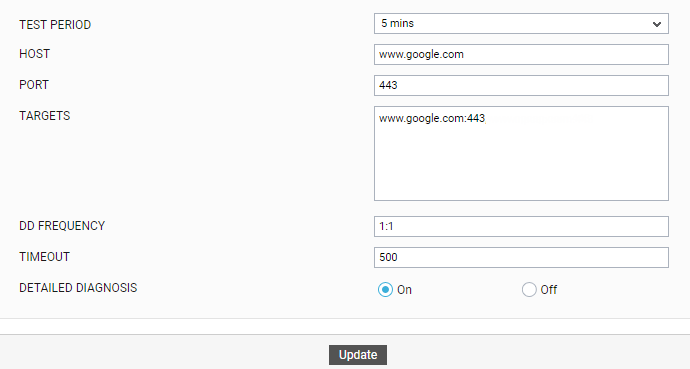

Figure 3 : Configuring the TCP Connectivity to Target test

To know how to configure this test, refer to TCP Connectivity to Target Test.

Click the Update button in Figure 3 to update the test configuration.
