The vCloud Resources Layer

With the help of the tests mapped to this layer, the following can be determined:

  1. The number of current connections between the vCloud Director Cell and the vCenter server / vShield Manager / vSphere hosts;
  2. The number of connections to the vCloud Director Cell;
  3. The current status of the vCenter server attached to the vCloud Director Cell,and the vSphere hosts managed by that vCenter;
  4. The status and space usage of the datastores managed by the vCenter server attached to the vCloud Director Cell.

vcresourceslayer

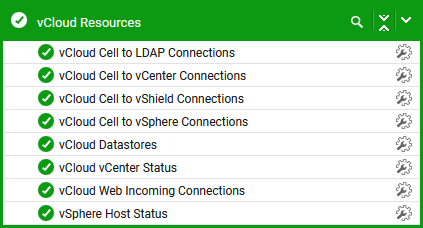

Figure 1 : The tests mapped to the vCloud Resources layer
