This is where hardware solutions like fabric interconnects prove invaluable. Implementing these advanced networking devices eliminates single points of failure and ensures continuous data flow across your infrastructure, even during path disruptions.
Fabric interconnects unite your servers, storage, and network resources into a cohesive, efficient IT ecosystem. Let’s explore how these special switches keep your infrastructure performing at its best while preparing for future demands.
What is Fabric Interconnect?
In your IT infrastructure, the fabric represents an interconnected mesh of devices, switches, and cables – much like threads woven together to form a piece of cloth, but for your network infrastructure.
“What is fabric interconnect?” is a common question asked by organizations looking to optimize their network infrastructure. First introduced in 2009 by Cisco, it’s a networking device that serves as a central hub, connecting your servers and network-attached equipment to your broader network and storage systems.
When considering fabric interconnects, you might think of a network switch, and that’s a good starting point. However, fabric interconnects offer superior management capabilities while integrating your network (LAN) and storage (SAN) connectivity into a unified framework.
With a Cisco fabric interconnect, you gain centralized management capabilities through Cisco UCS Manager, enabling you to control all connected devices from a single point. These devices scale to accommodate additional servers and workloads, adapt to changing traffic patterns, and support virtualized environments.
Most fabric interconnect devices are designed to work within Cisco’s product line, particularly the Unified Computing System (UCS). A Cisco UCS Fabric Interconnect offers line-rate, low-latency, lossless 10 Gigabit Ethernet, and Fibre Channel over Ethernet (FCoE) functions.
How Fabric Interconnects Work
As the unified access point for all servers within your UCS environment, fabric interconnect unites your blade servers housed in a server chassis, enabling seamless communication and data transfer.
These components fit perfectly at the top of your UCS chassis, facilitating optimal connections between your servers and external networks. When one of your servers needs to send data to another, the fabric interconnect determines the most efficient path to the destination, intelligently managing your network traffic flow.
The integrated management software enables you to monitor performance, manage resources, and configure settings across your UCS environment from a single interface.

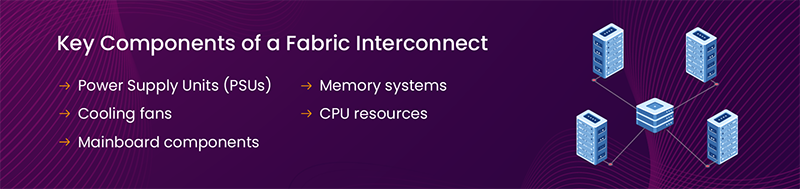

For fabric interconnects to function effectively as your network’s backbone, several critical components work together:
- Power Supply Units (PSUs) work in pairs to ensure continuous power delivery
- Cooling fans maintain optimal operating temperatures
- Mainboard components handle data processing and routing
- Memory systems manage cached and available memory for efficient data handling
- CPU resources coordinate all network operations
When these components operate outside normal parameters — whether it’s elevated temperatures, excessive CPU usage, or memory constraints — they can impact the entire system’s performance. For example, if CPU utilization spikes or available memory runs low, you might experience increased latency in network traffic flow.
Fabric interconnects can operate in two distinct states: Operable and Inoperable. In the Operable state, all components function within specifications. The Inoperable state indicates a hardware or resource issue requiring attention. Understanding these states helps maintain continuous communication between your blade servers and chassis.
What Is the Difference Between a Switch and Fabric Interconnect?
While similar in basic networking principles, fabric interconnects provide superior capabilities through their specialized architecture compared to traditional switches.
While conventional switches may experience high latency, fabric interconnects offer you superior bandwidth capabilities and low-latency connections, enhancing performance for your high-demand applications.
By combining networking and storage functions into one device, fabric interconnects reduce your need for additional hardware, helping you save on equipment purchases and maintenance costs.
Unlike switches with redundant configurations, which can result in potential points of failure if not managed correctly, fabric interconnects operate in active-active pairs, ensuring continuous operation even if one unit experiences issues.
Managing UCS Fabric Interconnects
Through unified management tools like Cisco UCS Manager, you gain streamlined control of your data center environment. The intelligent design of fabric interconnect optimizes resource utilization and enhances overall productivity, allowing you to automate processes and reduce operational complexities.
While modern IT infrastructures can be complex, we at eG Innovations help you maintain clear visibility and control. Our solutions provide your administrators with comprehensive insights into every tier of your IT framework through a central web console. We deliver the essential tools you need for proactive IT infrastructure monitoring, helping you simplify network management and optimize your IT environment.
Experience the difference – start your free trial today and transform how you manage your IT operations.
Fabric Interconnect FAQs
Here are key questions you might have about fabric interconnects:
What are the modes of fabric interconnect?
Fabric interconnects operate in two independent switching modes: End-Host Mode (EHM) and Standard Ethernet Switching Mode.
EHM simplifies your network configurations by allowing fabric interconnects to function as end-host devices rather than traditional switches.
In Switching Mode, your fabric interconnects function like traditional switches, providing full switching capabilities for connected servers. This offers flexibility when you need specific configurations.
When to use each mode:
End-Host Mode works best when you need simplified network management and enhanced performance. It’s particularly effective in virtualized environments where you run multiple virtual machines and need efficient traffic handling. This mode prevents spanning tree protocol issues and reduces the complexity of your network topology.
Standard Switching Mode is ideal when you require traditional switching capabilities or need to integrate with existing network infrastructures that depend on spanning tree protocol. This mode gives you more control over network traffic patterns and supports specific routing protocols that might be essential for your environment.
What is the Cisco Unified Computing System (UCS)?
The Cisco Unified Computing System is a data center architecture designed to improve the IT environment by integrating computing, networking, and storage resources into a unified system. This cohesive approach enables you to deploy applications efficiently and scale your operations as needed.
How do fabric interconnects support scalability?
As your business grows, fabric interconnects adapt to meet your changing needs. They support dynamic port configuration, allowing you to expand from a few servers to hundreds without major infrastructure changes. This flexibility helps you manage costs while maintaining performance.
Scalability extends beyond adding more servers. You can integrate new technologies, increase bandwidth, and add storage capacity without disrupting your operations. This future-proof design ensures your investment continues to deliver value as your IT requirements evolve.
