Configuring Tests for Boomi AtomSphere

After adding Boomi AtomSphere component, you will be redirected to the Components page (see ). Using the options provided in the Components page, you can modify, unmanage or delete the newly added component. In addition, you can also configure the tests, set thresholds and maintenance policies, and change the IP address.

Figure 2 : Listing the newly added Boomi AtomSphere component

To collect the performance metrics, you may need to configure the tests that are mapped to the Boomi AtomSphere component. To configure the tests that need manual configuration, click on the icon in .

then appears where the list of unconfigured tests will be listed in the UNCONFIGURED TESTS list box.

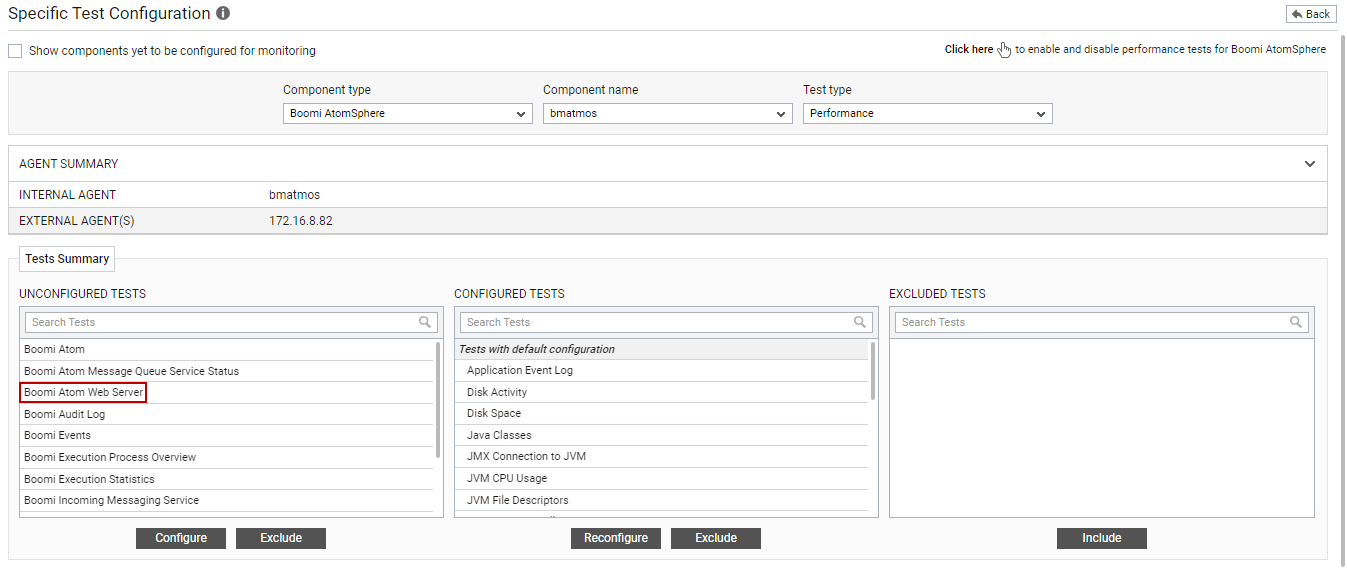

Figure 3 : The list of unconfigured tests for Boomi AtomSphere component

Click on any of the tests in to configure it. For instance, if you click on the Boomi Atom Web Server test, Figure 4 will appear.

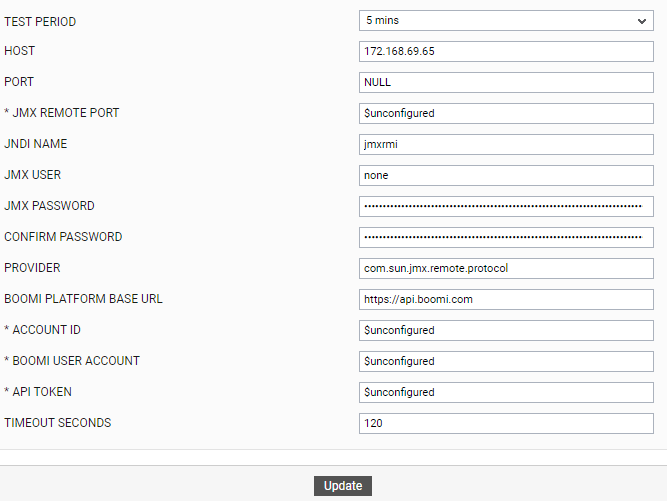

Figure 4 : Configuring the Boomi Atom Web Server test

To know how to configure this test, refer to Boomi Atom Web Server Test

Click the Update button in Figure 4 to update the test configuration. This will automatically configure all the other unconfigured tests for the Boomi AtomSphere component.
