Retrieving the Details of Components Associated with a Service

For each service created on eG Enterprise, administrators can use the eG REST API to retrieve the components associated with the service. The details of components such as the total number of components, name of the component and their severity can be retrieved. The URL can be specified in the following format:

URL: http://<eG manager IP:port>/api/eg/analytics/getServiceDetails

Method: POST

Content-Type: application/json

Inputs to be Specified
Parameters Key values Example

Headers

managerurl: Base URL of the eG Manager i.e., http://<IP address of the eG console:Port>

user: eG username or domain/eG username

pwd: Base64 encoded password

{

"service" : "SENTHIL-Database.Services.ALL"

}

Body

{

"service” : "name of service"

}





Success Response
Type Code Content

JSON

200

{

"total": 16,

"summary": [

{

"critical": 12,

"color": "#cd0f0f"

},

{

"major": 1,

"color": "#fa9d1c"

},

{

"minor": 2,

"color": "#ccc100"

},

{

"unknown": 1,

"color": "#30a1d9"

},

{

"normal": 0,

"color": "#0c9a12"

}

],

"details": [

{

"componentName": "MySQL_Cluster_10.87:3306",

"priority": "critical",

"componentType": "MySQL Cluster"

},

{

"componentName": "COUCHDB_10.73:5984",

"priority": "critical",

"componentType": "Apache CouchDB"

},

{

"componentName": "PostgreSQL_10.120:5432",

"priority": "critical",

"componentType": "PostgreSQL"

},

.

.

.

]

}



Failure Response
Type Code Content

JSON

401 UNAUTHORIZED

{"code": 401,"error": "Invalid username or password"}

JSON

400 BAD REQUEST

You may receive one of the following responses:

{"code": 400,"error": "Bad Request. Header parameters : Username or Password or Manager URL is missing"} (or)

{"code": 400,"error": "Bad Request. Header parameters : Manager URL, Username or Password is not provided"} (or)

{"code": 400,"error": "Please give Service name. "}

{"code": 400,"error": "Bad Request. Please refer EG REST API documentation and add required parameters for this API."}

JSON

500 Server Error

{"code": 500,"error": " Server Error. Please check /manager/logs/error_log in the installation directory for more information."}

Retrieving Details of Service Components Using Postman REST Client

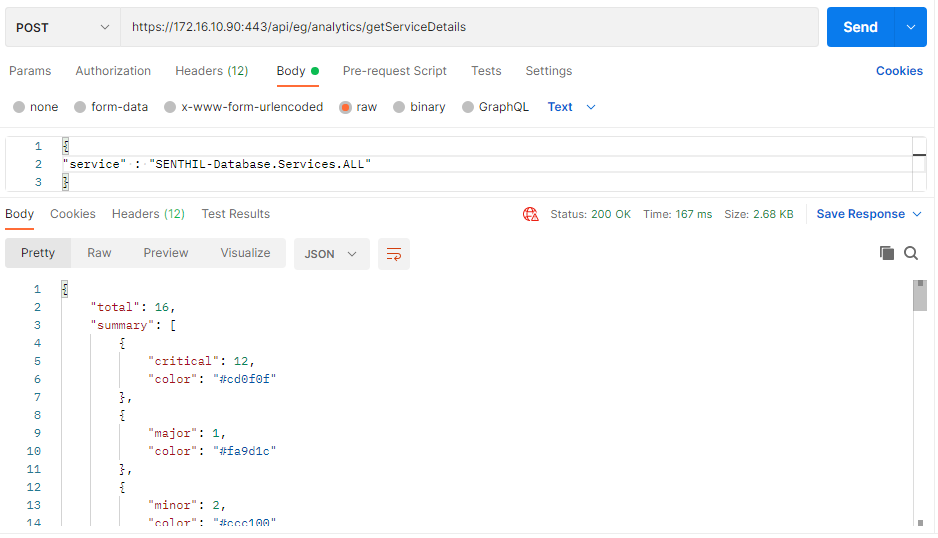

Figure 1 : Retrieving the details of components associated with a service using Postman REST Client

Retrieving Details of Components Associated with a Service using cURL

To retrieve the details of the components associated with a segment added on eG Enterprise using cURL, the command should be specified in the following format:

curl -L -X POST "http://<eG Manager IP:Port>/api/eg/analytics/getServiceDetails" -H "user:<eG username or domain/eG username>" -H "pwd:Base64 encoded password" -H "managerurl:http://<eG Manager IP:Port>” -H "Content-Type: application/json" --data-raw "{\"service\" : \"name of service\"}"

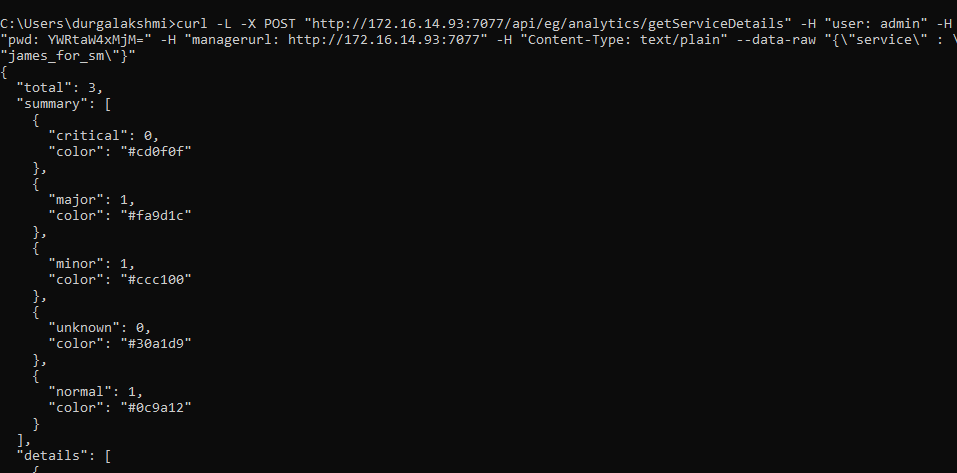

Figure 2 shows an example for retrieving the details of all the components associated with a segment using cURL.

Retrieving Details of Service Components Using cURL

Figure 2 : Retrieving the details of all the components associated with a service using cURL
